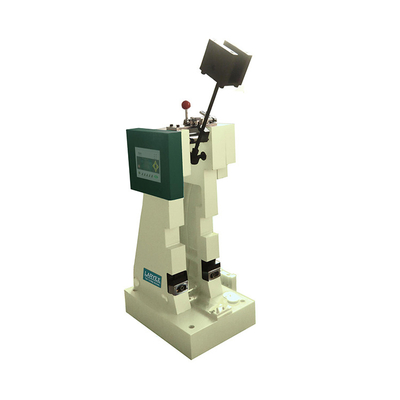

Name: Digital Charpy & IZOD Pendulum Impact Testing Machine Digital Charpy Quality and IZOD Pendulum Impact Testing Machine
Brand: Digital Charpy & IZOD Pendulum Impact Testing Machine Digital Charpy Quality and IZOD Pendulum Impact Testing Machine
SKU: CZT3250
Price: 1 USD
Availability: InStock
Rating: 4.7 (144 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Warranty: 1 year

Model Number: CZT3250

Power: Electronic

Function: Digital Charpy & IZOD Pendulum Impact Testing Machine

Impact Method: Charpy And Izod

Impact energy: Charpy:7.5J, 15J, 25J, 50J IZOD:5.5J, 11J, 22J

Energy Accuracy: 0.5 %

Impact speed (m/S): Charpy:2.9; 3.8 IZOD:3.5

Power supply: 1 Phase, 220V, 50Hz/60Hz

Certification: CE, ISO

Informations de base

Certification: CE, ISO

Model Number: CZT3250

Conditions de paiement et expédition

Packaging Details: Standard Export Wooden Case

Supply Ability: 150 Unit/Units per Month

Description de produit

This machine adopts the technology of photoelectric encoder to examine angle, the whole digital measures the material absorption energy and impact intensity of the material in the course of breaking, and possess intact energy and lose detection and revision function. High precision and stability, large test range. The tester is a kind of whole digital impact testing machine. By changing the weight at the end of pendulum it can get many kinds of test energy.

Model	CZT 3250
Impact Method	Charpy	IZOD
Impact energy	7.5J, 15J, 25J, 50J	5.5J, 11J, 22J
Energy Accuracy	0.5 %
Impact speed (m/S)	2.9; 3.8	3.5
Pendulum moment	Pd7.5 = 4.0192 Nm /Pd15 = 8.0385 Nm Pd25 = 13.397 Nm/ Pd50 = 26.795 Nm	Pd5.5 = 2.94744Nm/ Pd11 = .8949Nm Pd22 = 11.7898Nm
Raising angle	150°	150°
Round angle radius	R=2mm±0.5mm	R=0.8mm±0.2mm
Impact center distance	395mm	335mm
Power supply	1 Phase, 220V, 50Hz/60Hz
Dimension & Weight	550mm×350mm×850mm, 160kg
