Aperçu /Produits/Izod, machine à tester l'impact/Hot Plasticmaterial 2021 Charpy Impact Testing Testing Equipment Izod Impact Strength Lab Instrument With Great Price

Hot Plasticmaterial 2021 Charpy Impact Testing Testing Equipment Izod Impact Strength Lab Instrument With Great Price

1.0 Sets
MOQ
Hot Plasticmaterial 2021 Charpy Impact Testing Testing Equipment Izod Impact Strength Lab Instrument With Great Price
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 1 year
Customized support: OEM, ODM, OBM
Model Number: XJJD-5/25/50T
Power: Electronic
Product name: Touch Screen Plastic Impact Testing Machine
Display: Touch Screen
Pendulum: 150 J /300J
Function: plasticmaterial impact testing
Impact speed: 2.9/3.5mm/min
Impact energy: 7.5,15.0,25.0,50.0J
Rising Angle Of Pendulum: 150
Blade Corner Radius: (2±0.5)mm
Impact angle of blade: (1.0±0.1)mm
Power supply: 220VAC+10%,50Hz
Certification: CE ISO
Informations de base
Certification: CE ISO
Model Number: XJJD-5/25/50T
Conditions de paiement et expédition
Supply Ability: 100 Set/Sets per Month
Description de produit

2021 Hot Charpy Test Testing Equipment Izod Impact Strength Laboratory Instrument With Great Price

1. Application

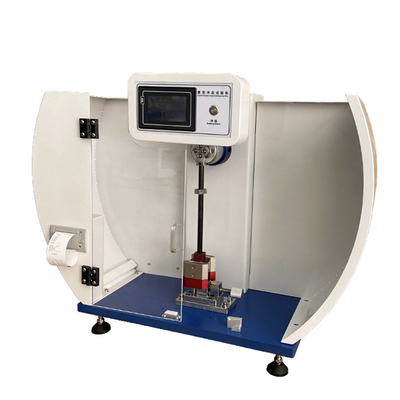

XJJD-T series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.

2. Standards:

The main technical parameters of this series of impact testing machines fully meet the requirements of IS0179, GB/T1043, GB/T2611, and GB/21189 standards

3. Main Technical Specifications:

3. Sample type, size, distance between support lines:

Specimen no.

Length(l)

Width (b)

Thickness (d)

Distance between support lines (L)

1

80±2

10±0.5

4±0.2

62

2

25h

10 or 15

3

20h

3

11h or 13h

6h or 8h

4. Technical Parameter:

Model:

XJJD-5T

XJJD-25T

XJJD-50T

Impact speed

2.9m/s

3.8m/s

3.8m/s

Impact energy

2.0,4.0,5.0J

5.0J, 7.5, 15.0, 25.0J

7.5,15.0,25.0,50.0J

Impact pendulum moment

Pd0.5=0.26795Nm

Pd1=0.53590Nm

Pd2=1.07180Nm

Pd4=2.14359Nm

Pd5=2.67949Nm

Pd5=2.67949Nm

Pd7.5=4.01924Nm

Pd15=8.03848Nm

Pd25=13.39746Nm

Pd7.5=4.01924Nm

Pd15=8.03848Nm

Pd25=13.39746Nm

Pd50=26.79492Nm

Rising Angle Of Pendulum

1500

Pendulum Impact Center To Impact Blade Distance: 230mm

Blade Corner Radius

(2±0.5)mm

Impact angle of blade

(30±1)0

Supporting Blade Corner Radius

(1.0±0.1)mm

Distance between jaw support lines

62

62

Power

220VAC+10%,50Hz
