ISO3127 ISO4422 EN 744 EN 1411 Therom Plastic Pipe Falling Dropping Hammer Impact Tester

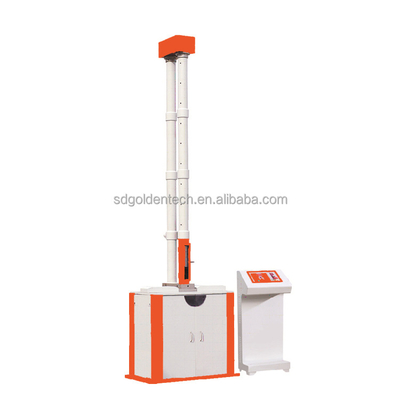

DHI-300-1000 Dropping Hammer Impact Testing Machine

(Test specimen: φ10~φ1000mm, impact height: 50 ~2000mm)

Product Description

1. Application:

This testing machine is widely used for the external loads impact strength test of plastic pipes, plastic board and non-metal materials. Test pieces are subject to blow from a falling striker, of specified mass and shape, dropped from a known height onto specified position around the circumference of the test piece. The true impact rate of the batch, or production run from an extruder is estimated.
The maximum value acceptable for the TIR is taken to be 10%.

It is ideal instrument for quality in construction industry, manufacturing unit, chemical industry and university.

2. Testing Standard:

ISO3127, ISO4422, EN 744, EN 1411, etc.

3. Main Technical Parameters:

No.	Model	DHI-300	DHI-300-1000
1	Diameter of pipe test specimen	φ10~φ630mm	φ10~φ1000mm
2	Maximum impact height	50 ~2000mm, display error ±2mm
3	Weight of hammer	0.5kg~16kg
4	Radius of hammer	5, 10, 12.5, 30, 50 etc can be chose
5	Rising speed	12m/min
6	Anti-rebound catching rate	100%
7	Power supply	single phase, 220V, 50Hz/60Hz
