Description de produit

Application:

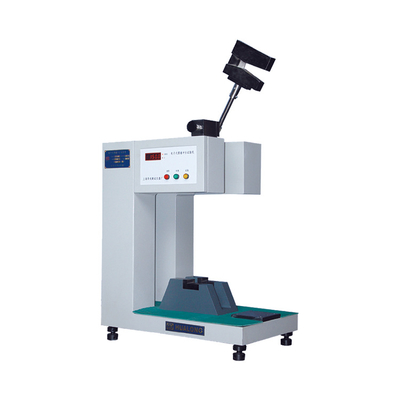

The electronic type adopts rasterdisplay technique of measuring circle angle, with the characteristics of high precision, good stability and wide range of measuring, digital display of testing split strength, impact intensity,foreelevation, ascending angle, automatic correcting the loses energy revises .

Technical parater:

Impact energy	50J standard configuration (others optional)
Pendulum torque	7.5J Pendulum PL=3.866Nm	15JPendulum PL=7.733Nm			25J Pendulum PL=12.889Nm		50JPendulum PL=25.777Nm
Dial indexing angle	1/100
Impact speed	3.8m/s
Pendulum angle	160°
The distance between pendulum center and sample center	380mm
Round angle of the jaw	R=1±0.1mm
Round angle of impact cutting edge	R=2±0.5mm
Impact blade angle	30±l°
Span of support(mm)	40mm		60mm	70mm		95mm
Energy loss	0.5%
Dimension	550mm×350mm×850mm
Weight(Kg)	160kg
